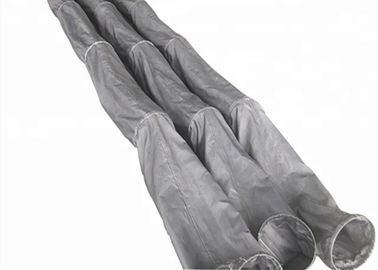

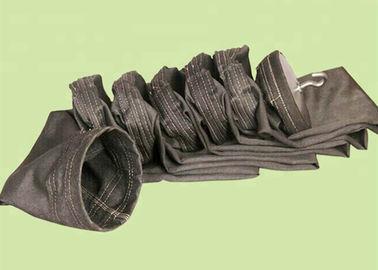

Name: 300x10850mm dust fiberglass filter bag with rings for system
Brand: Runningfilter

Minimum Order Quantity:	100PCS
Packaging Details:	CARTON BOX
Delivery Time:	20-30 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000000000 PCS PER MONTH

Contact Now

Detailed Product Description

Material:	Fiberglass	Usage:	Dust Filter
Size:	OEM Size,300mm X 10000mm	Application:	Silicone Iron,kinds Of Industry Dust Filtration
Shape:	Long Tube With Steel Ring	Price:	Competitive Price

Dia 300mmx Length10850mm fiberglass filter bag with rings for FILTER BAG

SPECIFICATION OF RAW MATERIALS CHOOSE FIBERGLASS WOVEN FILTER CLOTH

Article Name		FG350	FG550	FG750
Ingredients	Fiber	E-glass	E-glass	E-glass
Loss on ignition	%	10-13	10-13	10-13
Weight	g/m2	350±15	550±15	750±15
Thickness	mm	0.35±0.03	0.5±0.2	1.0±-0.2
Weave		1/3 twill	1/3 twill	Double twill
Permeability	cm3/cm2/s.127pa	4-7	3-6	3-5
Tensile breaking strength(N/2.5cm)	Warp	≥1300	≥2100	≥2300
Tensile breaking strength(N/2.5cm)	Weft	≥800	≥1300	≥1800
Maximum shrink of 90 mins	Temperature(°C)	260	260	260
Maximum shrink of 90 mins	%	≤1	≤1	≤1
Service Temperature(°C)	Continuous	240	240	240
Service Temperature(°C)	Instant	260	260	260
Velocity of filtration	m/min	< 0.6	< 0.7	< 1.0
