Product Details:
Payment & Shipping Terms:
|
Place Of Origin: | Shanghai | Usage: | Dust Filter |
---|---|---|---|
Material: | Glass Fibe | Size: | Accept Customization |
Brand Name: | Runningfilter | Type: | Pocket Filter |

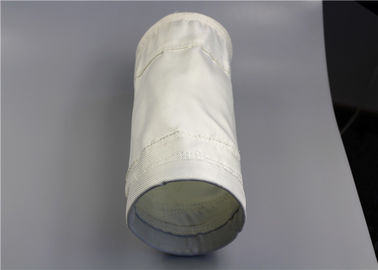

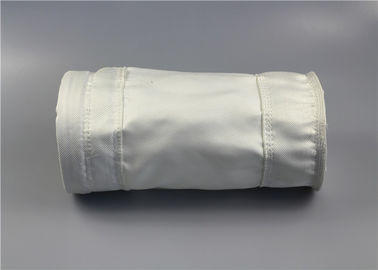

Industry China Best affordable Fiberglass Filter Bag for filter bag manufacturer
Performance:
1. good heat resistance, suitable for long-time use under a temperature below 280 deg.
2. good dust peeling performance, low power coindumption for ash removal.
3. The size of the fiberglass filter bags is more stable, no fiber shrinkage under the high temperature.
4. good chemical resistance:except hydroelectric acid strong acid,and strong alkaline, it is more stable than other filter medium.
5. The fiberglass filter fabric is not absorbing moisture and humidity
6. filtering efficient of the fiberglass filter bag can be over 99.5%etc and catch the dust below the PM2.5,we can get the 20mg air release.
7. High strength of the fiberglass filter cloth, can be more than 3000N/5*20cm
Features
1. Economical filter bags provide cost-effective filtration for industrial applications. High filtration performance and extended lifespan, Washable and reusable.
2. Large Flow Rate, suitable for the large volume or high viscosity liquid filtration.
3. Wide Chemical compatibility, filter bags are made of different materials in various micron ratings. Which can be compatible with many situations.
4. 100% Welded Seams, all abutting edges are welded without media migration or bypass.Customized Filter Bags Are Available.
APPLICATION
1. Remove the impurities of oil in the petrochemical industry
2. Filtration of sugar, spices, juices, tea in
the food industry
3. Solution and solvent filtration in the production of polyester and acrylic fiber
in the textile industry
4. Clarification of valuable ingredients,
and filtration of gelatin, cellulose and medicinal water in the pharmaceutical industry.
Specification of water and oil proof blending glass fiber filter bag
|
|
Weight (g/c㎡)
|
≥800
|
Thickness (mm)
|
2.4-3.0
|
Air Permeability
|
8-15 ±20%m³/㎡/min@ 12.7mmH₂O
|
Breaking Strength (N/5mm)
|
MD≥1800 CD≥1800
|
Elongation
|
MD≤10% CD≤10%
|
Heat shrinkage
|
MD≤1% CD≤1%
|
Temperature
|
Continuous working260℃ Instant300℃
|
Finish
|
Heat setting, PTFE impregnation
|
