anti-static Filter Bag PPS/aramid Filter Bag Industrial Filter Bags

China anti-static Filter Bag PPS/aramid Filter Bag Industrial Filter Bags supplier
anti-static Filter Bag PPS/aramid Filter Bag Industrial Filter Bags supplier anti-static Filter Bag PPS/aramid Filter Bag Industrial Filter Bags supplier

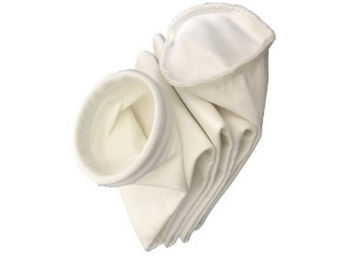

Large Image :  anti-static Filter Bag PPS/aramid Filter Bag Industrial Filter Bags

Product Details:

Place of Origin: CHINA
Brand Name: RUNNINGFILTER
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: EXPORT BOX
Delivery Time: 20-30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000000 PCS PER MONTH
Contact Now
Detailed Product Description
Material: PPS Non-woven Felt Area Weight: 500g/m2
Finish: Calendared/heat Set/singed Thickness: 1.9mm
Temperature: 204 Deg C Scrim Composition: Aramid Scrim

Dust Collection Filter Bag PPS Filter Bag Industrial Filter Bags/ Dust ilter bag For Ferroalloy Plant Dust Collector





1, Modification Filter Bag Features:

1) Material:

Bag body ----- Modification filter cloth

Bag cuff ----- steel-plate,rubber rings and garter spring isavailable

2) Working temperature:

Normal Working Temperature ----- 190-celsius-degree

Peak Working Temperature ----- 240-celsius-degree

3) Weight standard580g/m2
4) Filtration efficiencyup to 99.99%

5) Filtering precision: 120~200L/M2*S.

6) Dimension&Length: As customers' requirement.

7)Quality level: Fine strength&ideal air permeability&big durability.





2, Chemical data



500gsm aramid needle punched felt
Construction Needle Felt
Fibre Composition Aramid Fibre
Scrim Composition Aramid Scrim
Felt Area Weight 500g/m2
Thickness 1.9mm
Mean Air Permeability 16(m3/m2/min@200pa)
Breaking Strength-MD(warp) ≥800
Breaking Strength-CMD(weft) ≥1000
Breaking Elongation(N/5cm)-MD (warp) 35
Breaking Elongation(N/5cm)-CMD (weft) 60
Dry Shrinkage MD(130℃warp ) 1.5
Dry Shrinkage CMD(130℃weft ) 1.0
Operating Temperatures 204 deg C
Recommended Maximum Continuous 204 deg C
Recommended Maximum Surge 240 deg C
Finish Calendared/heat set/singed



550gsm PPS needle punched felt
Construction Needle Felt
Fibre Composition PPS Fibre
Scrim Composition PPS Scrim
Felt Area Weight 550g/m2
Thickness 1.8mm
Mean Air Permeability 15(m3/m2/min@200pa)
Breaking Strength-MD(warp) 800
Breaking Strength-CMD(weft) 1100
Breaking Elongation(N/5cm)-MD (warp) 35
Breaking Elongation(N/5cm)-CMD (weft) 60
Dry shrinkage MD(130℃warp ) 1.5
Dry shrinkage CMD(130℃weft ) 1.0
Operating Temperatures 160 deg C
Recommended Maximum Continuous 160 deg C
Recommended Maximum Surge 190 deg C
Finish Singed/calendared/heat set



3, Application:

1 iron, steel mill, ferroalloy plant, refractory plant, foundry,power plant of flue gas dedusting system etc.

2 Wastes incinerator, coal fired boilers, fluid fluidized bedboiler flue gas filter etc.

3 Asphalt mixing, building materials, cement ceramic, lime andgypsum and other production sites.

4 Aluminum electrolysis, lead and tin, zinc, copper and other raremetal smelting gas filtering,superfine material recovery, liquid andsolid separation.



4, Construction: filters are carefully fabricated and sized to ensure ease ofinstallation and change-out. Generally, dust collector filter bagsare designed to be mounted and gasketed firmly into place with asnap band, corded cuff, or clamp to ensure dust type seal.



5, Various coatings and finishes can be applied to either side of the dust collector Polyesater filter bag to enhance cleaning and efficiencies, aswell as prolonging service life. Groundwire, anti-collapse rings,and other options can easily be incorporated into bagconstruction. can custom fabricate various types ofattachments to work with your specific shaker mechanism,whether a loop, eyelet, grommet, or other device.



anti-static Filter Bag PPS/aramid Filter Bag Industrial Filter Bags
