Product Details:
Payment & Shipping Terms:
|
PRODUCT: | Ptfe Coateddust Collector Nomex Filter Bag Aluminium Frame Low Price | Martial: | Aramid Cloth |
---|---|---|---|
Woven: | Non-woven Needle Punch | Function: | Dust Filter |
Temperature: | Lower Than 200 Degree | Weight: | 450-550 G/sq |

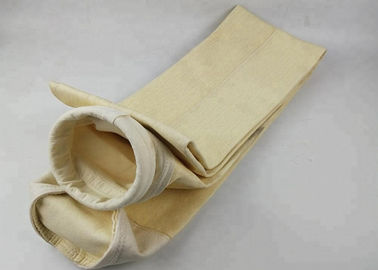

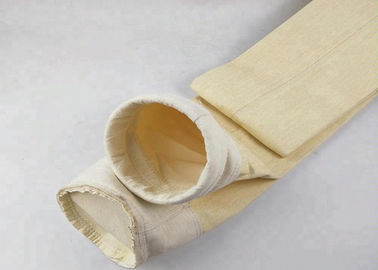

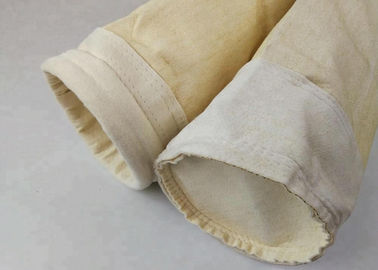

ptfe coateddust collector filter bag aluminium frame
1.The filter cloth is based on the thickness of the whole filter layer and belongs to deep filtration
2. the depth of the whole filter layer is formed from the fiber into a three-dimensional porous structure, from the inside and outside to the outside Dense, forming gradient filtering.
3. high pollution capacity, long filtration life, low pressure difference
4.Repeated cleaning, economic benefits
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
Material | Nomex Aramid filter/ Nomex aramid scrim | ||
Weight (g/m2) | 450 | 500 | 550 |
Thickness (mm) | 2.0 | 2.2 | 2.4 |
Air permenability |
21 | 17 | 14 |
Tensile strength/ warp | > 800 | > 800 | > 800 |
Tensile strength/ weft | > 1100 | > 1200 | > 1300 |
Tensile elongation/ warp | < 35 | < 35 | < 35 |
Tensile elongation/ weft | < 55 | < 55 | < 55 |
Broke strength (Mpa/min) | 2.55 | 2.40 | 2.35 |
Working temperature (℃) | ≤ 204 | ≤ 204 | ≤ 204 |
Peak temperature (℃) | 250 | 250 | 250 |
Anti Acidic | good | ||
Anti alkaline | excellent | ||
Anti alkaline | excellent | ||
hydrolisis | good | ||
Finishing treatment | heat setting, singeing, calendering, PTFE process |
