Product Details:
Payment & Shipping Terms:
|
Product Name: | Runningfilter 5 10 Micron Polyester Dust Collector PP Filter Bag Factory | Standard Finish Options: | Heat Set, Singed, Glazed |
---|---|---|---|
Color: | White | Gram Weight: | 400-600g |
Weight: | 550g/m2 | Working Temperature: | 130-150℃ |

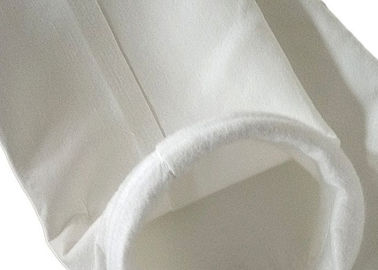

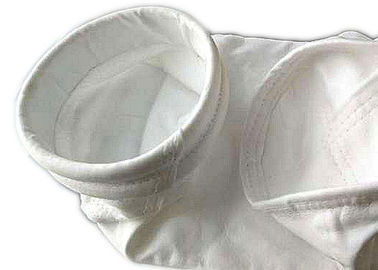

5 10 micron Polyester dust collector PP Filter Bag
Filter bag structure should meet the requirement of filtration and dust collecting in the corresponding baghouse. at the same time, it should be easy to install, have good sealing while having relevant filtration area and condition.
The selection of filter bag matieral working conditionmust be used in the full understanding and filter under the condition of technical conditions.
* Fillter material performance should meet the production conditions and the general situation of the dust collectionprocessingand special requirements
* choose long service life filter materialas far as possible.Not onlyfor saving operational costs, but alsomeet the requirements of gas emissions standards.
* To deal with all kinds of filter material comprehensive comparison.
(PET) |
Polypropylene Needle Felt (PPF) |
Polypropylene Plain (PPP) |
|
Temp. | 130 ℃ | 90 ℃ | 90 ℃ |
Aqueous | fit | fit | fit |
Aliphatic | fit | fit | fit |
Alkaline | fit | fit | fit |
Strong Alkaline | |||
Aromatic | fit | ||
Acid | fit | fit | fit |
Strong acid | fit | fit |
Specification
Type | Flow rate(m3/h) | Filtration area(m2) | Size(diameter×length) |
#1 | 20 | 0.25 | 7’’×16’’ (180 mm×410 mm) |
#2 | 40 | 0.50 | 7’’ ×32’’ (180 mm×810 mm) |
#3 | 6 | 0.10 | 4’’ ×8.25’’(102 mm×210 mm) |
#4 | 12 | 0.15 | 4’’ ×14’’(102 mm×356 mm) |
#5 | 5 | 0.30 | 6.7’’ ×8’’(175 mm×870 mm) |
*Size could be on your request |
Product Features
Features
1.Economical filter bags provide cost-effective filtration for industrial applications. High filtration performance and extended lifespan, Washable and reusable.
2.Large Flow Rate, suitable for the large volume or high viscosity liquid filtration.
3.Wide Chemical compatibility, filter bags are made of different materials in various micron ratings. Which can be compatible with many situations.
4.100% Welded Seams, all abutting edges are welded without media migration or bypass.Customized Filter Bags Are Available.
Order information
Product | Material | Micron | Seal type | Size |
KTMT |
PET PPF PPP NMO |
5 um-500 10 um-1000 25 um-2500 50 um-5000 75 um-7500 100 um-10000 |
Steel ring-S Polypropylene ring-P |
1 2 3 4 5 X-special |
Application:
1.Remove the impurities of oil in the petrochemical industry
2.Filtration of sugar, spices, juices, tea in
the food industry
3.Solution and solvent filtration in the production of polyester and acrylic fiber
in the textile industry
4.Clarification of valuable ingredients,
and filtration of gelatin, cellulose and medicinal water in the pharmaceutical industry.
