Product Details:
Payment & Shipping Terms:
|
| Product Name: | Water And Oil Repellent Polyester Antistatic Filter Bag For Air Filter Collector | Material Of Bag: | Non-woven |
|---|---|---|---|
| Size: | Accept Customization | Temperature Resisitance: | 130(Cont),150(Peaks) |
| Surface Design Treatment: | Singeing,Calendering,Heat-set,PTFE Impregnation | Using Scope: | Cement,Steel, Smelting,Building Material |

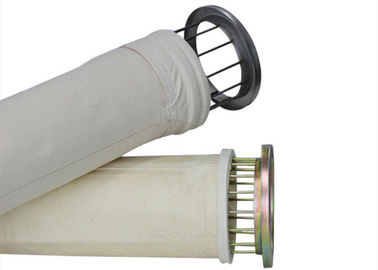

Water and Oil Repellent Polyester Antistatic filter bag for air filter collector
Product Description
Polyester is the most versatile,most cost effective and most widely used filter medium for dust collection. It is strong, abrasion resistant, can work up to 150 ℃ and has good resistance to common acids, solvents and oxidizing agents.
This filter bag contain conductive fiber to prevent electrostatic.
| Item | Performance Index | |
| Component | Fiber | 100%Polyester |
| Scrim | 100%Polyester | |
| Weight | g/m2 | 500±5% |
| Thickness | mm | 1.7±0.2 |
| Air Permeability | L/dm2.min | 150 |
| Breaking Strength | Longitudinal | ≥1000 |
| Transverse | ≥1200 | |
| Elongation | Longitudinal | ≤25 |
| Transverse | ≤35 | |
| Shrinkage240 degree 2hours | Longitudinal | ≤1% |
| Transverse | ≤1% | |
| Operating Temperature | Continuous | 130 |
| Peaks | 150 |
Polyester needle punched filter felt
Polyester needle felt is the most versatile, most cost effective and most widely used filter medium for dust collection. It is strong, abrasion resistant, can work up to 150°C and has good resistance to common acids, solvents and oxidising agents.
Disadvantages
Polyester's only real weakness is a tendency to hydrolyse at elevated temperature which means that moisture can break down the fibres and cause them to revert to their basic constituents. This results in powdering of the fibres and a serious loss of strength.
Application
Because of its favourable price/quality ratio, polyester is the most common fibre used in filter media.
• Mining
• Cement Industry
• Iron and Steel Industry
• Aluminum and Non Ferrous Industry
• Ceramic Industry
• Quarrying
• Plastics
• Milk Powder
• Flour Mills (Applications under dry conditions up to temperatures of 150°C)
Cement industry dust filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the cement industry dust filter bag dust collector and its accessories are the venture tube, frame, mouth of elastic ring, etc.
the specifications of the commonly used cement industry dust filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.
The oval, flat, envelope and support ring types of cement industry dust filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference.
