|Equipment Name:||High Flow Filter Cartridge End Caps Welder||Power::||6KW|
|Power Supply:||380V 50HZ||Air Pressure:||6Kg/cm2|

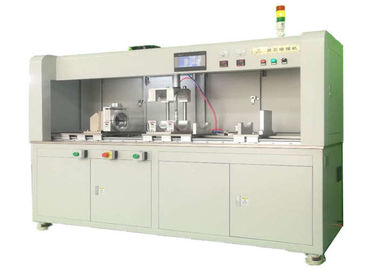

High flow filter cartridge end cap welding machine
The welding machine for the end cap of filter element is a special equipment for hot melt welding, which is composed of filter paper and two plastic end caps. The fixed displacement of the filter cover and the heater is driven by the cylinder, so that the heated surface of the plastic cover contacts with the heater heating surface, making the surface melt, and then the heated surface is quickly bonded and solidified into a whole.
Brief Introduction of Welding Machine for Filter End Cover
Introduction and Welding Principle of Filter Core Welding Machine
There are two heating heads with end caps on the machine. The electric power of each heating head is 1500 watts, totaling 3000 watts. The fixed displacement of the filter cover and the heater is driven by the cylinder, so that the heated surface of the end cover is in contact with the heater heating surface to melt the surface, and then the heated surface is quickly bonded and solidified into a whole. These moving parts include filter element feeding mechanism, end cover clamping manipulator, heater lifting mechanism, pressure device and so on. These mechanisms are designed and assembled into the whole machine. The mechanism is driven by the cylinder. According to the new welding process requirements of plastic welding machine, this equipment adopts the automatic control system of programmable logic controller (PLC) and touch screen man-machine interface operation, which is simple, accurate and reliable.
Component of filter element welding machine
1. Cylinder: This machine has five cylinders and two end cap clamping manipulators:
A) Pushing two cylinders of heating head at both ends of filter element (simultaneous heating and moving)
B) Push the feed plate forward and backward to move one rodless cylinder
C) Push one cylinder up and down on the lifting platform
D) One cylinder of clamping device for pressing filter element
E) These cylinders and machines are controlled by solenoid valves.
2. Touch screen (man-machine interface operation):
This machine uses PLC touch screen. There are six operation interfaces (besides start and stop buttons), automatic and manual buttons, heating time and curing time settings, manual buttons of various agencies, process flow instructions of PLC can be displayed on the screen. Connect with PLC to control the automatic system.
3. Programmable Logic Controller (PLC)
This machine adopts Delta PLC with 24 input points and 24 output points. The starting, stopping, stroke switch, magnetic switch, photoelectric switch and other control signals of the machine are connected to the input point. Connect all solenoid valves, necessary relays and indicator lights to the output point. All control procedures and flow charts are input and stored by computer.
4. Indicators, meters and thermostats:
The indicator lamp on the middle panel is the display and control power supply. The action, position and state of the solenoid valves are clear and clear at a glance. The indicator lamp on the right panel shows the on-off working state of the temperature control system. The thermostat is used to set the required temperature and to automatically adjust the temperature of the heater.
3. Electrical part:
The power distribution of this machine is divided into three parts: temperature control system of filter element heater, temperature control system of end cover heater and PLC control system. It is powered by L1, L2, L3 three-phase five-wire, L1 phase for filter element heater, direct current 24V power supply and PLC, L2 phase for left end cover heater, L3 phase for right end cover heater system. The operation and distribution are clear.
Advantages of Filter Core Welding Machine
1. It can be applied to workpieces of different sizes without area limitation
2. It can be applied to any welding surface without special requirements
3. The welding surface can be allowed to compensate plastic allowance, and the welding strength can be guaranteed
4. According to the needs of various materials, the welding procedure can be adjusted
5. The fixture can be fixed on the position of the corresponding upper and lower pressing plates
6. The power and orientation of the upper and lower pressing plates can be adjusted. Under the function of the system, the rubber parts can be contacted with the hot-pressing die at high speed, smoothly and without impact for hot-pressing, so that the material of the joint surface of the rubber parts can reach the melting state
7, leave the hot-pressing die
8 smoothly and quickly in a relatively short time, and design the hot-pressing die heating plate and the upper and lower fixture as an independent assembly component, which is convenient for installation and transportation.
9. Hot-pressing board materials are imported from abroad. Working principle
High flow filter cartridge end cap welding machine can be used for 3M,Pull, and is mainly used for welding the plastic end caps at both ends of the filter cartridge. After welding, it can effectively ensure the sealing and firmness of the outer cage, filter layer and end caps.
Equipment Name: High flow filter cartridge end caps welder
Equipment model: RF-H1640
Equipment power: 6KW
Power supply: 380V 50HZ
Air pressure: 6Kg/cm2
Heating accuracy: ± 2 ° C
Temperature range: normal temperature ~ 400 °C
Welding speed: about 30S / pcs
Equipment weight: about 800Kg
4, configuration details:
Touch screen + PLC: Delta
Circuit breaker: LG
Solid state: Shimadan
Guide rail, slider: HIWIN
Auxiliary appliances: IDEC
Pneumatic components: Airtec
Protective cover: European standard aluminum profile + PMMA
Parts: carton steel C 45(S45C) (Galvanized)
Filter cartridge holder: 6061 aluminum plate (surface anodized)
6, delivery time: 30 working days
