Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Shanghai | Material: | Aramid Fiber |
|---|---|---|---|
| Application: | Dust Collector Bag House | Color: | Dust Collector Bag House |
| Brand Name: | Runningfilter | Work Temperature: | 200-240 Degree |

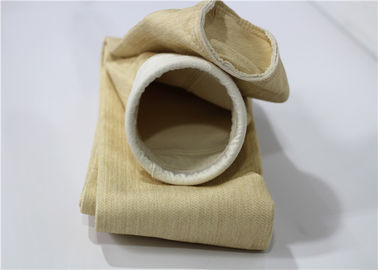

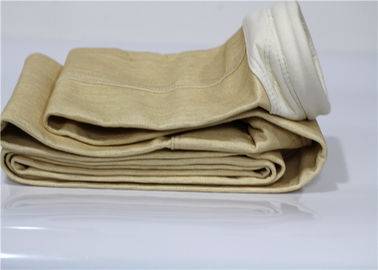

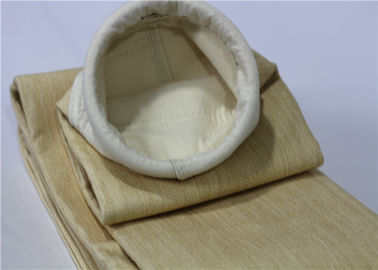

Thermoplastic Textile Dust Filter Bag , PTFE Filter Bag Equisite Sewing Unbleached
1. High-quality fiber, high-efficiency filtration, reducing emissions and running resistance.
1) The company selects high-quality fine fibers, increases the filtration area of the filter material and reduces the filtration gap of the filter material, which improves the filtration efficiency of the filter material, reduces the emission concentration and the running resistance.
2) Running filter material is produced by international advanced German Autefa equipment, and the performance of filter material is stable.
Filtered material post-processing based on customer conditions.
Running Different surface treatments or protective layers of the needle felt filter material according to the change of dust characteristics to meet the customer's demand for different working conditions.
3, the production of filter bags in strict accordance with the national standard GB/T6719-2009, to ensure the product pass rate.
1) The saddle row pad (non-rubber ring) made of elastic expansion ring and the same material filter material is used to prevent the rubber ring from aging at high temperature and the filter bag is detached.
2) Dislocation treatment is adopted at the seam of the bag to ensure the close fit of the bag mouth and the flower plate to prevent the dust from leaking from the hole of the flower plate.
3) The needle spacing of the filter bag is 25±1, the filter bag has no drop and float phenomenon, and the comprehensive strength of the filter bag is >1000N.
|
Specification of Aramid NX filter dust bag
|
|
|
Weight (g/c㎡)
|
400-600
|
|
Thickness (mm)
|
1.8-2.4
|
|
Air Permeability
|
15%m³/㎡/min@ 12.7mmH₂O
|
|
Breaking Strength (N/5mm)
|
MD≥900 CD≥1200
|
|
Elongation
|
MD≤25% CD≤45%
|
|
Heat shrinkage
|
MD≤1% CD≤1%
|
|
Temperature
|
Continuous working 204℃ Instant 240℃
|
|
Finish
|
Singeing, calendering
|
Our company adopts the international advanced standard, and has produced Aramid high-temperature needled filter felt with advanced equipment.
According to different requirements of working conditions, our company do various functional processing on Aramid high-temperature needled filter felt, such as water and oil repellent, PTFE impregnation, coating , laminating and so on.
