Product Details:
Payment & Shipping Terms:
|
Place Of Origin: | Shanghai, China (Mainland) | Brand Name: | Runningfilter |
---|---|---|---|
Package: | Box | Temperature: | 260℃ |
Bag Size: | As Your Require | Application: | Industry Dust Collector |
Mixing Plant Fabric Filter Bags , Dust Sock Filters Large Volume Easily Hydrolyzed

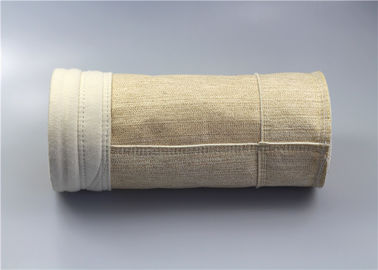

Aramid dust collection bags
Aramid dust collection bags can resistant high temperature of 204-240 degree and widely used in all models of asphalt mixing plant . Our company concentrate in manufacturing filter bag for 25 years and we are the exclusive supplier of AMMANN asphalt mixing plant in CHINA .
Feature :
1. Aramid has excellent heat resistance, flame resistance, high temperature dimensional stability.
2. Particularly conspicuous is its excellent mechanical properties, strength and polyester similar to wear resistance, good resistance to bending and has excellent characteristics of textile processing, can acupuncture into spun lace non-woven fabric.
3. Aramid fiber at different temperatures, strong retention rates at different times, including in the dry heat temperature of 250 C for 1000 hours under the conditions of its strength retention up to 60%.
4. Aramid fiber as a functional fiber in high temperature dust filtration industry has an irreplaceable status, but because of the characteristics of molecular structure determines, it has some defects. Such as poor resistance to strong acid, high temperature hydrolysis is poor, not in the coal-fired boilers, waste incineration and other industry applications.
Product Name
|
Aramid/Aramid 500A1
|
|
Craft
|
Needle-punched
|
|
Fiber
|
Aramid
|
|
Scrim
|
Aramid
|
|
Weight
|
500±5%
|
g/㎡
|
Thickness
|
1.8±10%
|
mm
|
Air Permeability
|
3.0±25%
|
m³/㎡/min
|
Breaking Strength- Warp
|
≥1000
|
N/5cm
|
Breaking Strength- Weft
|
≥1200
|
N/5cm
|
Breaking Elongation- Warp
|
≤25
|
%
|
Breaking Elongation- Weft
|
≤45
|
%
|
Working Temperature
|
204
|
℃
|
Instant Temperature
|
240
|
℃
|
Finish Treatment
|
Heat set, Singeing, Calendering, Water and oil Proof, PTFE Membrane
|
Features
High temperature (204-240 deg.C) anti-acid,anti-alkali
High filtration blow speed,low pressure drop,anti-break and anti-abrasion.
Easily be hydrolyzed in the condition of high temperature, which mostly applied in pitch mix gas
Blast furnace gas in steel factory,gas,tail gas of white char,kiln
1.Economical filter bags provide cost-effective filtration for industrial applications. High filtration performance and extended lifespan, Washable and reusable.
2.Large Flow Rate, suitable for the large volume or high viscosity liquid filtration.
3.Wide Chemical compatibility, filter bags are made of different materials in various micron ratings. Which can be compatible with many situations.
4.100% Welded Seams, all abutting edges are welded without media migration or bypass.Customized Filter Bags Are Available.
Application:
1. Remove the impurities of oil in the petrochemical industry
2. Filtration of sugar, spices, juices, tea in
the food industry
3. Solution and solvent filtration in the production of polyester and acrylic fiber
in the textile industry
4. Clarification of valuable ingredients,
and filtration of gelatin, cellulose and medicinal water in the pharmaceutical industry.
