|Jianchuan Road, Minhang Distrcit, Shanghai, Chinafirstname.lastname@example.org|
Payment & Shipping Terms:
|Place Of Origin:||Shanghai, China (Mainland)||Application:||Industry Dust Collector|
|Brand Name:||Runningfilter||Material Of Bag:||PTFE|

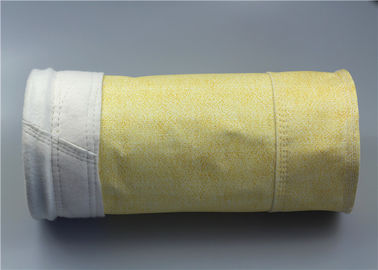

Woven Aramid Filter Bag , Meta Aramid Felt Fiber Socks 100-260°C Working Temperature
1. High-quality fiber, high-efficiency filtration, reducing emissions and running resistance.
1) The company selects high-quality fine fibers, increases the filtration area of the filter material and reduces the filtration gap of the filter material, which improves the filtration efficiency of the filter material, reduces the emission concentration and the running resistance.
2) Running filter material is produced by international advanced German Autefa equipment, and the performance of filter material is stable.
Filtered material post-processing based on customer conditions.
Running Different surface treatments or protective layers of the needle felt filter material according to the change of dust characteristics to meet the customer's demand for different working conditions.
3, the production of filter bags in strict accordance with the national standard GB/T6719-2009, to ensure the product pass rate.
1) The saddle row pad (non-rubber ring) made of elastic expansion ring and the same material filter material is used to prevent the rubber ring from aging at high temperature and the filter bag is detached.
2) Dislocation treatment is adopted at the seam of the bag to ensure the close fit of the bag mouth and the flower plate to prevent the dust from leaking from the hole of the flower plate.
3) The needle spacing of the filter bag is 25±1, the filter bag has no drop and float phenomenon, and the comprehensive strength of the filter bag is >1000N.
Aramid dust collection bags
Aramid dust collection bags can resistant high temperature of 204-240 degree and widely used in all models of asphalt mixing plant . Our company concentrate in manufacturing filter bag for 25 years and we are the exclusive supplier of AMMANN asphalt mixing plant in CHINA .
1. Aramid has excellent heat resistance, flame resistance, high temperature dimensional stability.
2. Particularly conspicuous is its excellent mechanical properties, strength and polyester similar to wear resistance, good resistance to bending and has excellent characteristics of textile processing, can acupuncture into spun lace non-woven fabric.
3. Aramid fiber at different temperatures, strong retention rates at different times, including in the dry heat temperature of 250 C for 1000 hours under the conditions of its strength retention up to 60%.
4. Aramid fiber as a functional fiber in high temperature dust filtration industry has an irreplaceable status, but because of the characteristics of molecular structure determines, it has some defects. Such as poor resistance to strong acid, high temperature hydrolysis is poor, not in the coal-fired boilers, waste incineration and other industry applications.
|Filter Bag Specification|
|Size||Diameter:133mm Length:2000/2500/3000mm (customized)|
|Diameter:160mm Length:4000/5000/6000mm (customized)|
1. Dust filtration-----filter bag and filter felt
Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.
2. Liquid filtration filter bag
Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.
