Trimming And Whole Packing RO Membrane Making Machine With Fast Speed

China Trimming And Whole Packing RO Membrane Making Machine With Fast Speed supplier

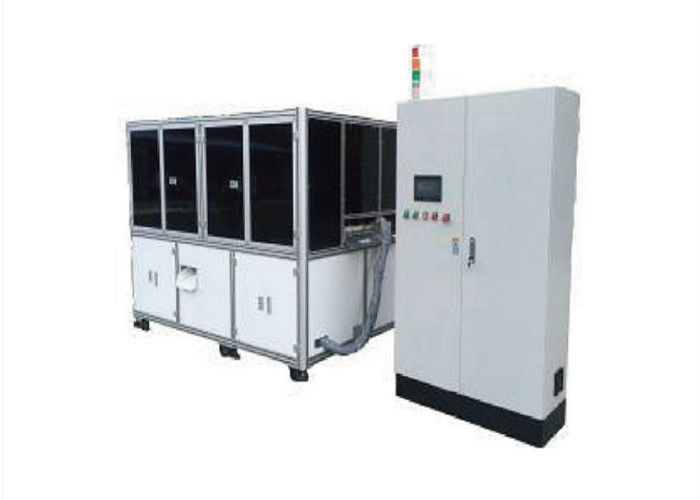

Large Image :  Trimming And Whole Packing RO Membrane Making Machine With Fast Speed

Product Details:

Place of Origin: CHINA
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 STE PER MONTH
Contact Now
Detailed Product Description
Product: Trimming And Whole Packing Machine Applicable Product Specifications: 1810-3013
Cutting Speed: 1-240r/m Cutting Accuracy: ±0.25mm



Basic functions:

1. Realize automatic feeding, automatic conveying and strong versatility.


2. Fully automatic film cutting: servo manipulator accurately controls cutting speed and depth.


3. Automatic edge pulling function: servo manipulator controls displacement, waste falls into recycling box.


4. Automatic top ring: Vibrating disc conveys 0 rings automatically, and the manipulator grasps and inserts them into the central pipe of the filter element.


5. Negative Pressure Detection Function: Manipulator automatically grabs the products for negative pressure detection and discharges the qualified and unqualified products to the qualified and unqualified areas respectively.


6. Automatic upper water stop ring: Vibrating disc automatically conveys water stop ring manipulator automatically grasps, detects anyway and then sets it on RO film.


7. Auto-wrapping of water-stop ring tape: automatic tape-sticking device automatically wraps water-stop ring tape.


8. RO film trademark automatic pasting.


9. Realize the function of automatic cutting.


10. Applicable products: 1810-3013 series.




Main configurations:

Cutting drive motor Panasonic

Cutting motor Delta

Peeling Drive Motor Panasonic

Top O-ring drive motor Panasonic

Pneumatic drive motor Panasonic

Feeding drive motor Panasonic

Jack-up drive motor Panasonic

Clamping Cylinder SMC

Vibrating Disk Matching

Rotary Cylinder SMC

PLC Omron

Touch Screen



Equipment parameters:


Applicable product specifications 1810-3013

Control Mode: PLC + Touch Screen

Cutting speed 1-240r/m

Negative Pressure Detection

Cutting speed 0.1-100mm/sec

Automatic feeding and unloading of filter element

Cutting accuracy (+0.25mm)

O-ring feeding mode

Round knife service life 12 months

Automatic stripping

Pressure detection range 0-100KPa

Cutting mode: Active motor + driven top shaft

Minimum variation of pressure difference 0.1KPa

Upper O-Ring Mode Automatically Upper O-Ring

Pressure error (+0.5%)

Upper water stop ring mode automatic

Capacity 180-240pcs/h

Power 6 KW 220V

Weight about 600 KG

Size L37000*W1700*H1800mm
