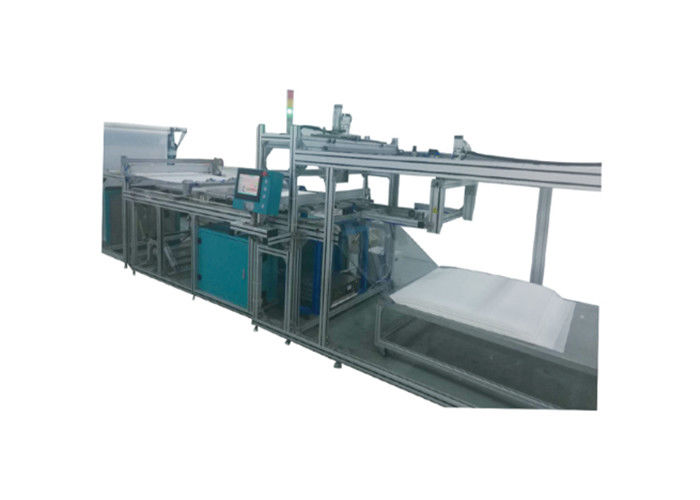

Tricot Cutting & Welding RO Membrane Making Machine With High Efficiency

tricot cutting & welding machine

Basic functions:

1. Automatic unwinding and cutting machine adopts magnetic powder braking technology, so as to keep constant tension to ensure the accuracy of cutting when unwinding.

2. Intelligent control with PLC program can be adjusted according to requirements. Mitsubishi PLC intelligent control system has stable performance and can adjust cutting width and specifications arbitrarily.

3. Dynamic cutting mechanism: using German imported rodless cylinder to drive blade cutting, high efficiency, no dust;

4. Multi-page guide cloth can be positioned automatically and welded automatically. The welding accuracy can be controlled within (+0.5 mm).

5. Automatic cutting and unexpected alarm: The machine realizes automatic stacking and cutting of the guide cloth. The unexpected automatic alarm does not need personnel to guard, and can be inspected regularly.

6. The system has its own fault detection function: when a fault occurs, the monitor status of the display screen can prompt the fault point, which is convenient for rapid maintenance.

Main configurations:

Servo Motor/Motor Matsushita/Mitsubishi, Japan

Magnetic Powder Brake Chuying

PLC Mitsubishi, Japan

Touch Screen

Inflation Axis Shanghai

Cylinder SMC of Japan

Cutter blade imported alloy steel

Bearing

Low Voltage Electrical Appliances Schneider, Germany

Ultrasound Module Special Customization

Equipment parameters:

Rewinding maximum diameter 800mm

Mandrel size 3“

Maximum traction length of diversion cloth 1500mm

Maximum production speed 4-6 sheets/m

Scope of application: diversion cloth

Gas source working pressure (MPa) 0.6-0.8 MPa

Working power supply 220V 50Hz

Total power of the equipment is about 3.5KW

Ultrasound welding method

Welding Drive Mode: Servo Motor + Cylinder

Welding Accuracy (+0.5mm)

Cutting accuracy (+0.5mm)

The weight of the machine is about 1.5T.

The exterior dimension of the whole machine is 3470*1820*1262 mm (length*width*height)
