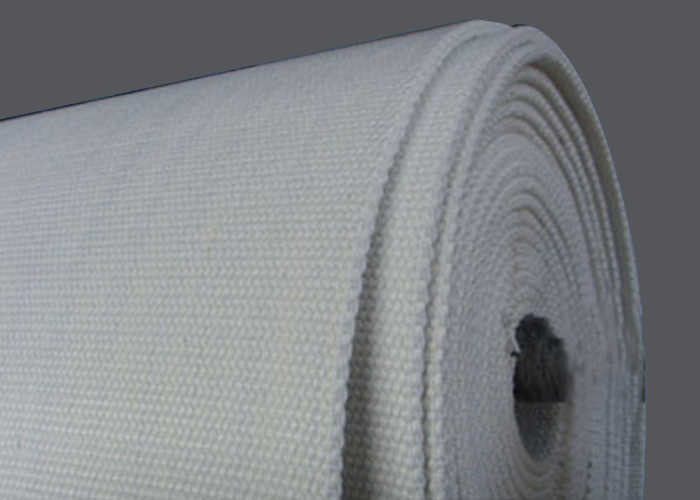

High Temperature Roller Conveyor Parts Permeable Belt Pneumatic Convey
The breathable cloth is also called synthetic fibre breathable belt (also known as breathable cloth, breathable layer, industrial cloth, inclined groove cloth, inclined groove cloth, inclined groove canvas, air groove breathable layer, canvas conveyor belt, cement bulk carrier breathable layer, air box breathable layer, inclined groove cloth, breathable plate, breathable belt, etc.). It is the core material of powder material and particulate material conveying equipment.
Material: polyester staple, polyester filament
Our company's new air permeable plate is made of high-quality yarn with heat resistance and corrosion resistance. It is weaved on special equipment according to specific requirements. Its technical performance and product quality have reached the advanced level of similar products in the world, and have the following advantages:
1. The cloth is clear, flat, stable in size and not deformed.
2. Good air permeability, uniform and stable air flow.
3. Heat resistance, wear resistance and corrosion resistance.
4. Low energy consumption, long life and little maintenance.
Usage: Mainly suitable for pneumatic conveying of powder and particulate matter in air conveying chute, homogenization tank, pneumatic lifting pump, bulk tanker, metallurgy, chemical industry, steel plant, power plant and other industries.
Characteristics of breathable cloth: smooth surface, high overall strength, no deformation, uniform and stable air permeability, high temperature resistance, wear resistance, corrosion resistance, moisture absorption, no delamination, no ash return, easy installation, energy saving, long service life and so on.
Permeable cloth performance index
Main Technical Indicators of Products
| Tensile Strength (kg/40mm) | Thickness(mm) | Air Permeability (m3/㎡.min) | Temperature℃ | Weigh(tkg/㎡) |
| >500 | 6 | 2 | ≤180 | 4.2 |
| >500 | 5.5 | 2.3 | ≤180 | 3.8 |
| >450 | 5 | 3 | ≤180 | 3.5 |
| >450 | 4 | 3.5 | ≤180 | 3.2 |
| >350 | 3 | 5.4 | ≤180 | 2 |
| >550 | 5 | 2.1 | ≤180 | 4.1 |
