Industrial Membrane Manufacturing Machine Sheet / Spacer Cutting Low Noise

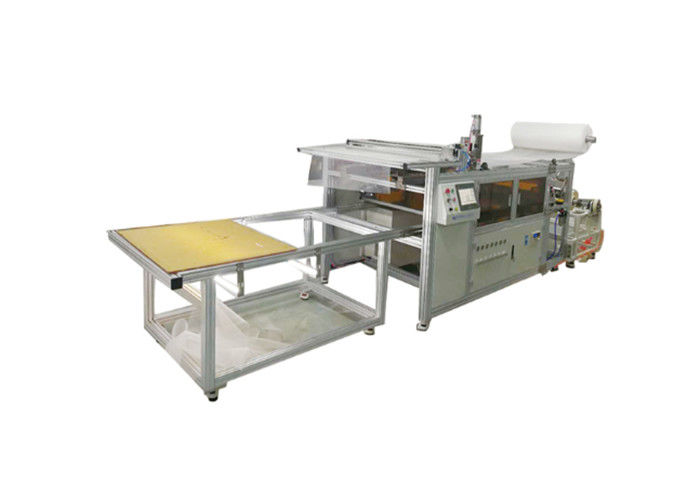

industrial membrane sheet/spacer cutting machine

Basic functions:

1. Automatic unwinding and cutting machine adopts magnetic powder braking technology, so as to maintain constant tension to ensure the accuracy of cutting when unwinding; PLC program intelligent control can be adjusted according to demand: Mitsubishi PLC intelligent control system has stable performance, and can arbitrarily adjust the cutting width and specifications;

2. Automatic trimming: both sides of the diaphragm can be trimmed automatically by traction (800mm-1100mm adjustable);

3. Cutting accuracy and efficiency: the main drive adopts servo motor to control the cutting accuracy, and the cutting speed can be controlled within (+0.5 mm) at about 500-700 pieces per hour.

4. Unique traction design, no damage to the diaphragm in contact with the coating 0: Human-like mechanical clamp design ensures that the surface of the diaphragm is not damaged during traction;

5. The system has its own fault detection function: when a fault occurs, the monitor status of the display screen can prompt the fault point, which is convenient for rapid maintenance.

Six mesh diaphragm cutting at the same time: Double traction design is adopted, and mesh diaphragm cutting at the same time effectively improves production efficiency.

Main configurations:

Servo Motor Matsushita/Mitsubishi, Japan

Magnetic Powder Brake Chuying

PLC Mitsubishi, Japan

Touch Screen

Inflation Axis Shanghai

Cylinder SMC of Japan

Cutter blade imported alloy steel

Bearing

Low Voltage Electrical Appliances Schneider, Germany

Equipment parameters:

Rewinding maximum diameter 800mm

Mandrel size 3“

Maximum cutting length 1800MM

Widest Cutting Width 1100MM

Scope of application: Industrial diaphragm/grid

Gas source working pressure (MPa) 0.6-0.8 MPa

Working power supply 220V 50Hz

Total power of equipment is about 4 KW

The weight of the machine is about 0.6T.

The overall size of the machine is 4860 * 1500 * 1700mm (length * width * height)
