Product Details:
Payment & Shipping Terms:
|
Yarn Count: | International Standard | Material: | 100% Polyester |
---|---|---|---|
Width: | Made To Order | Supply Type: | Make-to-Order |
Keywords: | Airslide Pipe | ||
Highlight: | air slide belt,air slide canvas |

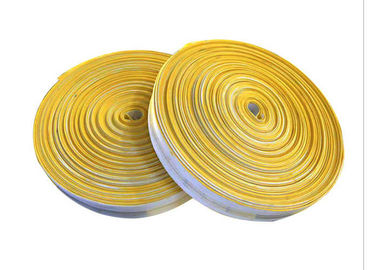

Special airslide pipe for bulk cement tank conveyer belt
One side permeable,good abrasion resistance and long service life all synthetic.
One side PU coated,standard colour yellow PU-coating increases the abrasion resistance and supports at the same time the air permeability of the uncoated saide.
Material:
Warp:100% polyester high tenacity fiber
Weft:100% polyester high tenacity filament
Characteristics:
One side air permeable,other side PU-coated.Good abrasion resistance and long service life all aynthetic,lightweight and flexible,easy to coil ageing and ozone resistant-weather resistant minimum maintenance.
cold resistant to -30°c
heat resistant to +160°c
Applications:
Aertion of bulk powders and granular in silos and silo wagons.
Dimension:
Standard diameter 76mm other diameter on request.
Standard lengths are 30m,50m,100m.Max length up to 500m and also avilable in any other length.
Specification:
Type | Internal Diameter(mm) | Falt Width(mm) | Weight(g/m) |
HP/C---1 | 58 | 92 | 180 |
HP/C---2 | 71 | 113 | 210 |
HP/C---3 | 76 | 120 | 240 |
HP/C---4 | 77 | 125 | 300 |
Type | Air resistance in 0.2 m³/m²/h H2O mm |
High | 600---900 |
Low | 200---500 |
Meter |
30 |
50 |
100 |
