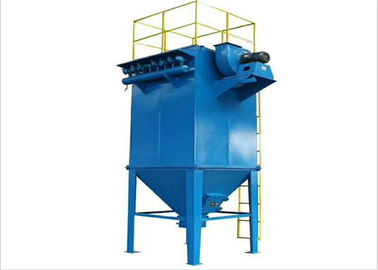

|Name:||120 Bag Pulse Dust Collector Small Cloth Bag Dust Collector For Warehouse Top Dust Collector In Foundry||Specifications:||24 Bags, 36 Bags, 48 Bags, 64 Bags, 72 Bags, 84 Bags, 96 Bags, 120 Bags, Non-standard Customization|
Introduction of oblique insertion filter cartridge dust collector:
The oblique insertion filter drum dust collector is an efficient, economical and practical dust recovery and purification and treatment device; it is a kind of environmental protection equipment widely used in powder industry, food industry, pharmaceutical industry, hardware processing industry, die industry, chemical industry, electronic industry, automobile industry, rubber industry, mining industry and other industries. Installation of this equipment can improve industry. For the environment, dust emission meets the relevant national laws and regulations. It is a very efficient and traditional treatment process in air purification, which is suitable for various industries.
The structure of inclined insertion filter cartridge dust collector:
The side-pumping series consists of the following components:
_The main parts include: filter room, ash collection room, fan, chimney, PLC control system.
Other auxiliary systems: imported pulse valves, air storage tanks, unloading systems, dust collection boxes, filters, differential gauges, etc.
Characteristics of oblique insertion filter cartridge dust collector:
_High purification efficiency - The filter cartridge imported or assembled domestically can ensure 99.99% filtration efficiency for submicron particles.
_Small occupation area - the perfect combination of high efficiency filter cartridge and submerged flow dust collector greatly reduces the volume and occupation area of dust collector.
_Low operating costs - low operating resistance, low energy consumption and operating costs. Usually the initial resistance is 25 mm water column, and the normal operation resistance is 50-75 mm water column.
Design Science - Design of horizontal filter cartridge, maintenance and replacement of filter cartridge is simpler, quicker, safer and shorter downtime. Using the unique design principle of submerged flow, gravity and top-down airflow pattern, the secondary pollution of dust filter material is avoided.
_Simple and convenient operation - advanced full-automatic compressed air pulse ash removal mode is adopted to make the service life of the filter cartridge longer and ensure the continuous low resistance operation of the dust collector.
Flexibility - According to the actual situation or customer requirements, the equipment can be designed as explosion-proof or non-explosion-proof.
Principle of oblique insertion filter cartridge dust collector:
Principle Description: Side-suction filter barrel collector filter barrel is installed horizontally, suction outlet is usually set at the top of the equipment. Dust-containing gas enters the filter chamber of the dust-collecting equipment through the entrance of the dust-collecting equipment. Due to the slow wind speed, heavier dust falls to the funnel; lighter dust is filtered with the gas through the filter barrel and adheres to the surface of the filter barrel; clean air passes through the outlet and is discharged from the windmill chimney. Because the dust-containing gas enters the dust collector from the upper part of the equipment, the direction of dust falling is the same as that of the airflow, so the pressure loss of this type of dust collector is smaller. This type of dust removal equipment covers a small area and is widely used in powder feeding, packaging dust, welding dust, plastic dust and other working conditions.
